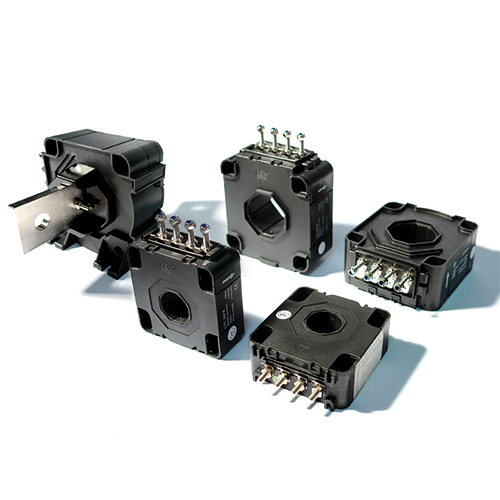

LTC 600-SF

Modular & compact current transducers for traction applications. Horizontal or vertical mounting with or without busbar integrated &/or feet integrated or can be delivered separately. Feet can be mounted in 3 different ways to create 3 possible vertical mountings. Busbar can be mounted in two ways according to customer preference. Aperture 42 x 12 mm or 42 mm diameter for the primary conductor crossing. Closed Loop Hall effect. DC, AC pulse currents’ measurements of 600 to 1000 ARMS nominal with galvanic isolation. Power supply +/- 15 to 24 V. Dual fastening mode for the secondary connections: either 4xM5 threaded studs or 4 x Faston (6.3 x 0.8 mm). -40 °C to +85 °C. Shield available as standard. Current output. Excellent accuracy, good response time.
